ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m

  • 1
  • 2

Brand Name : zetron

Model Number : ZRD2100

Certification : CE

Place of Origin : China

MOQ : 1 piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 set/month

Delivery Time : in stock

Packaging Details : paper box

product type : Laser Methane Detector

Detecting Gas : Laser Remote Methane Gas leak Detector

Measuring range : 0 to 99,999 ppm*m

protection level : IP54

Size : 206mm×200mm×76mm

Weight : 2.6kg

Contact Now

ZRD-2100 Remote Methane Leak Detector

OVERVIEW

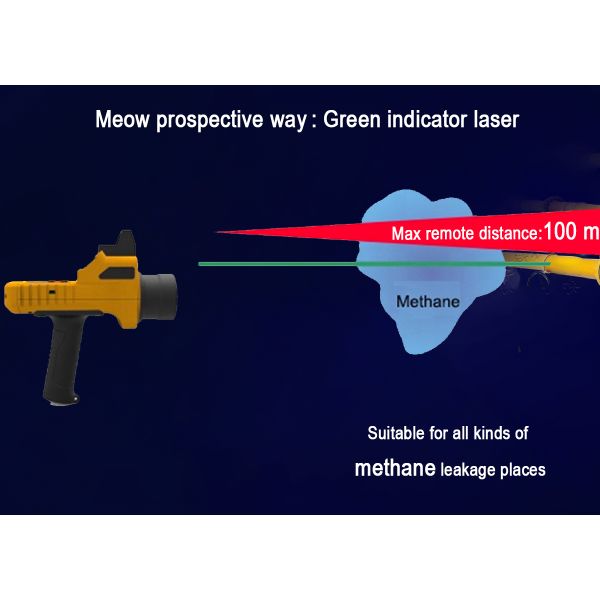

ZRD-2100 Remote Methane Leak Detector uses international advanced tunable diode laser absorption spectroscopy technology (TDLAS), which can detect methane gas within a certain distance. At the same time, through optimization design and independent research and development, the detection distance and accuracy of the detector are greatly improved, which is the most powerful safety guarantee for gas inspection and leak detection.
SPECIFICATION

Detection Method
Hand-held Laser Remote Methane Gas leak Detector which can detect 100m
Detection Gas
Methane
Measurement Method
Laser Reflection
Measurement Range
0 to 99,999 ppm-m
Detection Distance
100m nominal. Actual distance may vary due to
background type and conditions
Sensitivity
5 ppm-m at distances from 0 to 15m
10 ppm-m or better from 15 to 100 m
Measurement Accuracy
±10%
Response Time
0.1s
Detection Alarms Modes
Buzz with LCD turning red

Laser Eye Safety
IR Detector Laser:
Class I
Green Spotter Laser:
Class IIIa; Do not stare into the beam or view directly with optical instruments.
Display
Large easy to read backlit LCD
Compliance
EMC (EN61000-6-2, EN6100-6-4) Pending
Self Test & Calibration
Built-in Self-Test and Calibration function verifies
operation and adjusts laser wavelength for maximum sensitivity. Test gas cell integrated with carrying case.
Battery
Rechargeable Lithium battery
Battery Operating Life
8 hours (Internal battery)
Battery Charger
External, in-line, 220 VAC, 50/60 hertz universal type with charge indicator
Enclosure
IP54 (Water splash and Dust resistant)
Size
206mm×200mm×76mm
ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m
ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m
ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m
ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m
ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m
ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m
APPLICATION

The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention. The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.

ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m
